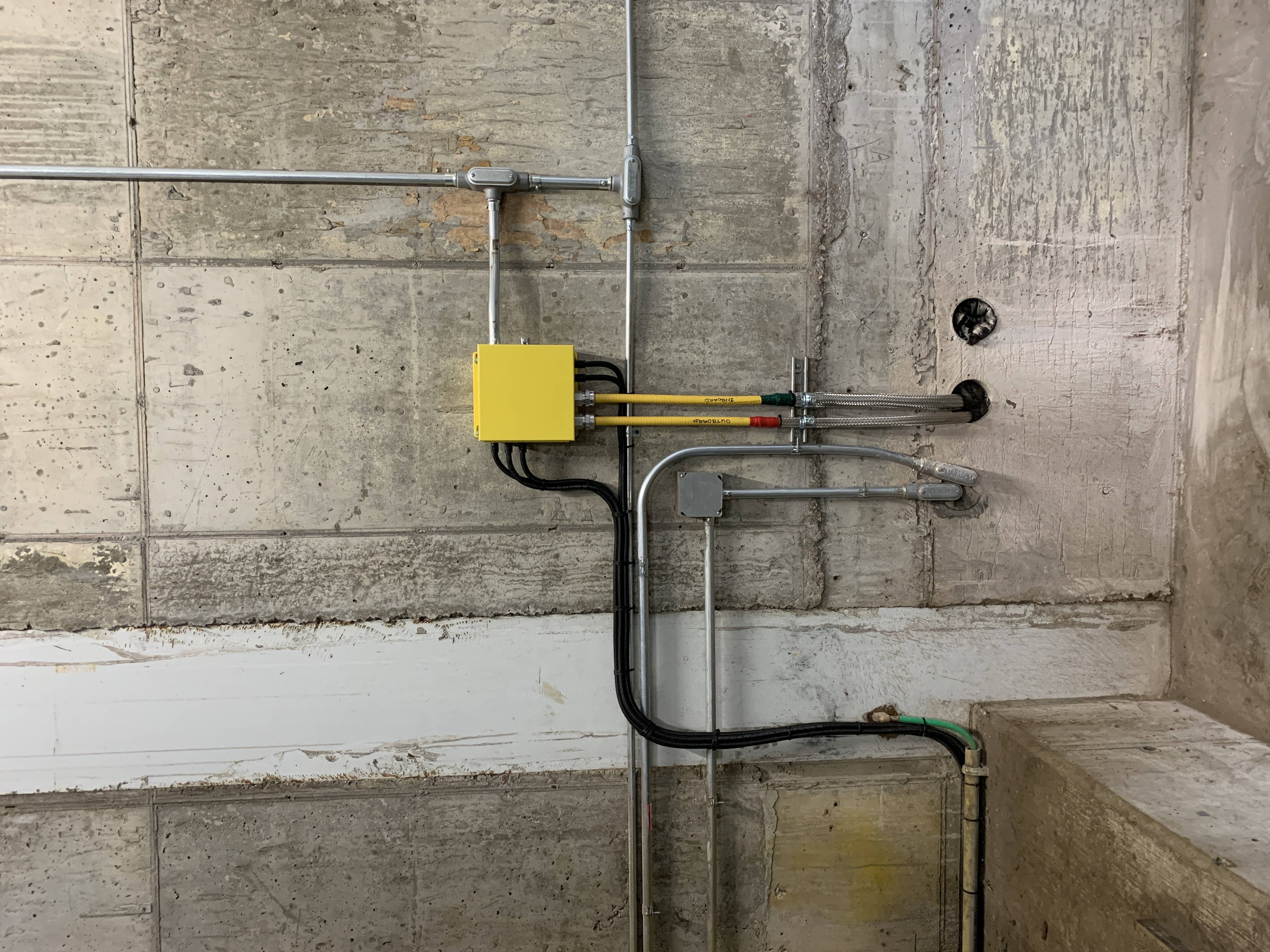

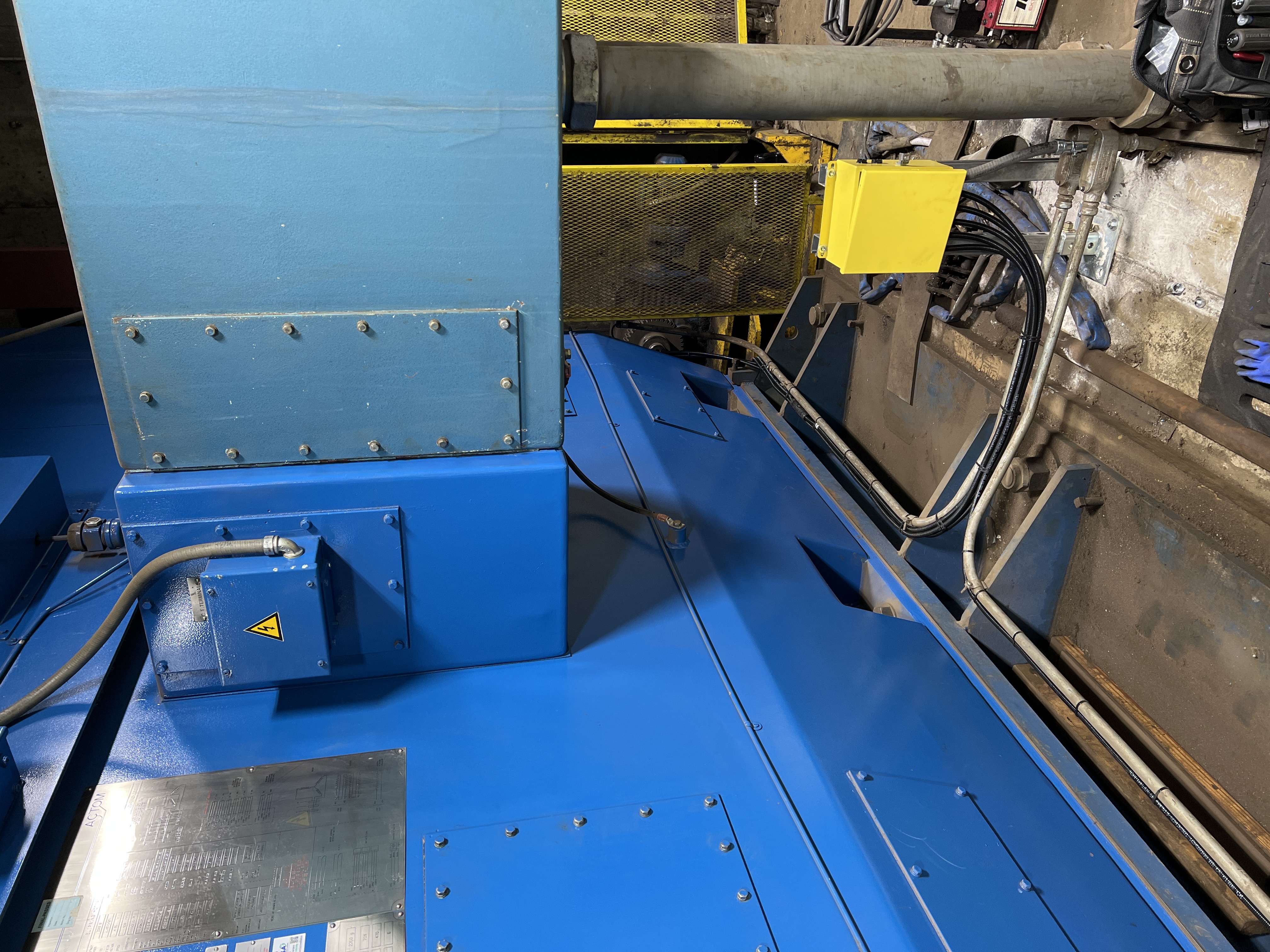

Mount the concentrator board junction box within close proximity of the motor.
Route the flyleads from the motor bearing and sled sensors to this enclosure.
Mount it in a location that allows for easy accessibility and maintenance.
Each concentrator board supports up to 6 smart sensors. Sensor terminals 1-6 are clearly marked on the circuit board.

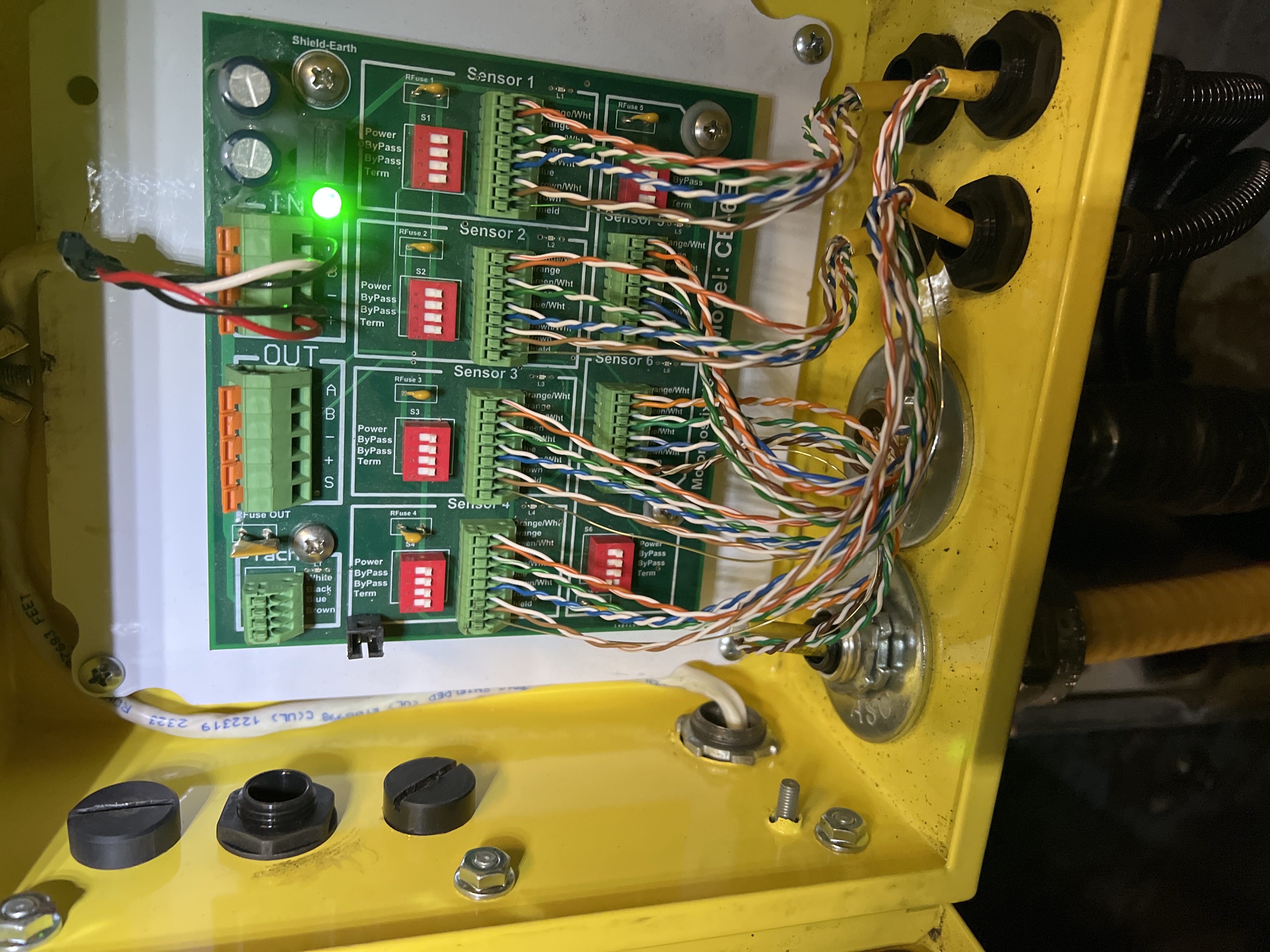

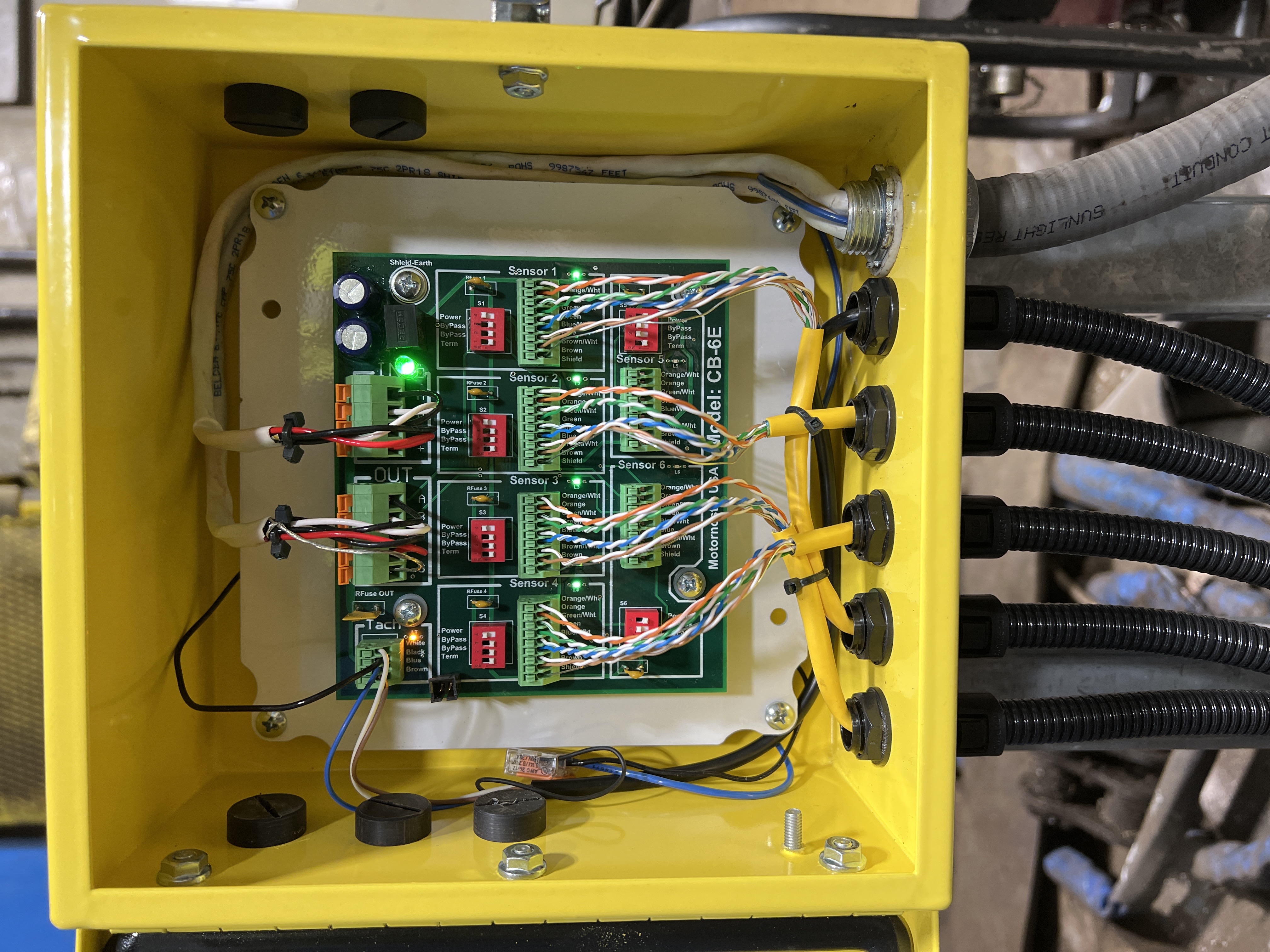

Example of concentrator board wiring.

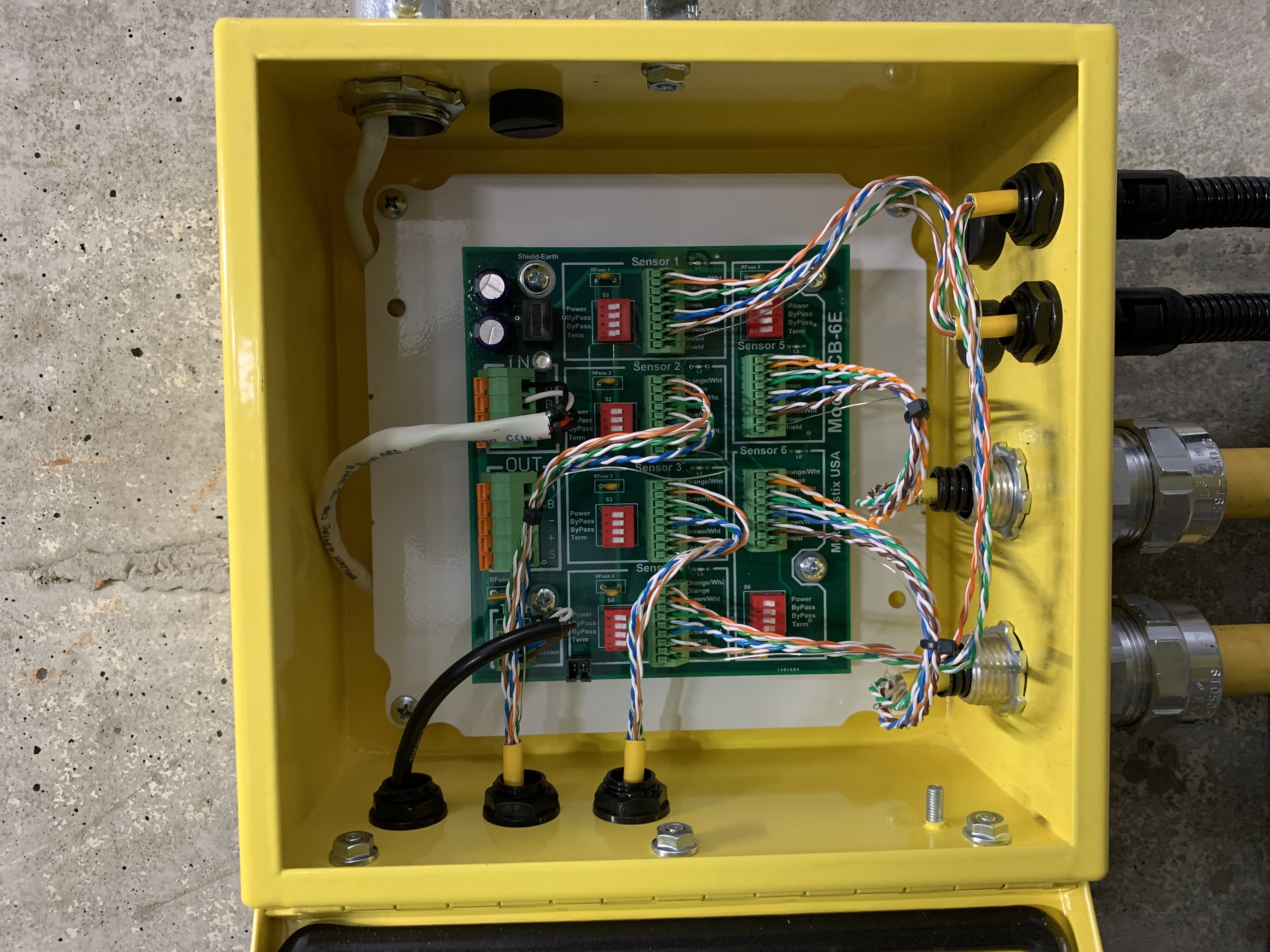

Another example of concentrator board wiring.
| For sites with 6 sensors | ||
|---|---|---|
| Sensor Terminal | Smart Sensor | |
| 1 | Motor NDE bearing | |
| 2 | Motor DE bearing | |
| 3 | Motor sled DE-Left | |
| 4 | Motor sled DE-Right | |
| 5 | Mill inboard bearing | |
| 6 | Mill outboard bearing | |
| Concentrator board 1 | |
|---|---|
| Sensor Terminal | Smart Sensor |
| 1 | Motor NDE bearing |
| 2 | Motor DE bearing |
| 3 | Motor sled NDE-Left |
| 4 | Motor sled NDE-Right |
| 5 | Motor sled DE-Left |
| 6 | Motor sled DE-Right |
| Concentrator board 2 | |
|---|---|
| Sensor Terminal | Smart Sensor |
| 1 | Inboard mill foundation |
| 2 | Outboard mill foundation |
| 3 | Inboard mill bearing |
| 4 | Outboard mill bearing |
| 5 | Uncommitted |
| 6 | Uncommitted |
| For an uncommitted sensor terminal (has no sensor wiring) | |
|---|---|
| Sensor Terminal | Term |
| Power | OFF |
| Bypass | ON |
| Bypass | ON |
| For a sensor terminal wired to a sensor | |
|---|---|
| Sensor Terminal | Term |
| Power | ON |
| Bypass | OFF |
| Bypass | OFF |
| For sites with a single concentrator board | |
|---|---|
| Sensor Terminal | Term |
| 1-5 | OFF |
| 6 | ON |
| For sites with a multiple concentrator boards | |
|---|---|
| Sensor Terminal | Term |
| All sensor terminals | OFF |
| Sensor 6 on last concentrator board | ON |
